G103D three-axis laser scanning galvanometer
G103D three-axis laser scanning galvanometer

 Product Features


1. Adopting three-axis dynamic focusing control technology, with high positioning accuracy and fast response speed;

2. Support free switching between 2D and 3D modes to adapt to diverse scenarios;

3. Strong surface processing capability, suitable for fine processing of flat, curved, and three-dimensional surfaces;

4. Designed with Pre Objective Scanning System, it has a short working distance and a large scanning area;

5. Suitable for large format, complex surfaces, and multi height work scenarios;

6. Optical lenses with diverse materials, wavelengths, and damage thresholds are available for selection to meet diverse usage needs.


 Product Application

Two dimensional laser scanning galvanometers are widely used in industries such as laser etching, online flight marking, laser drilling, laser welding, laser cutting, additive manufacturing, 3D printing, and medical beauty.

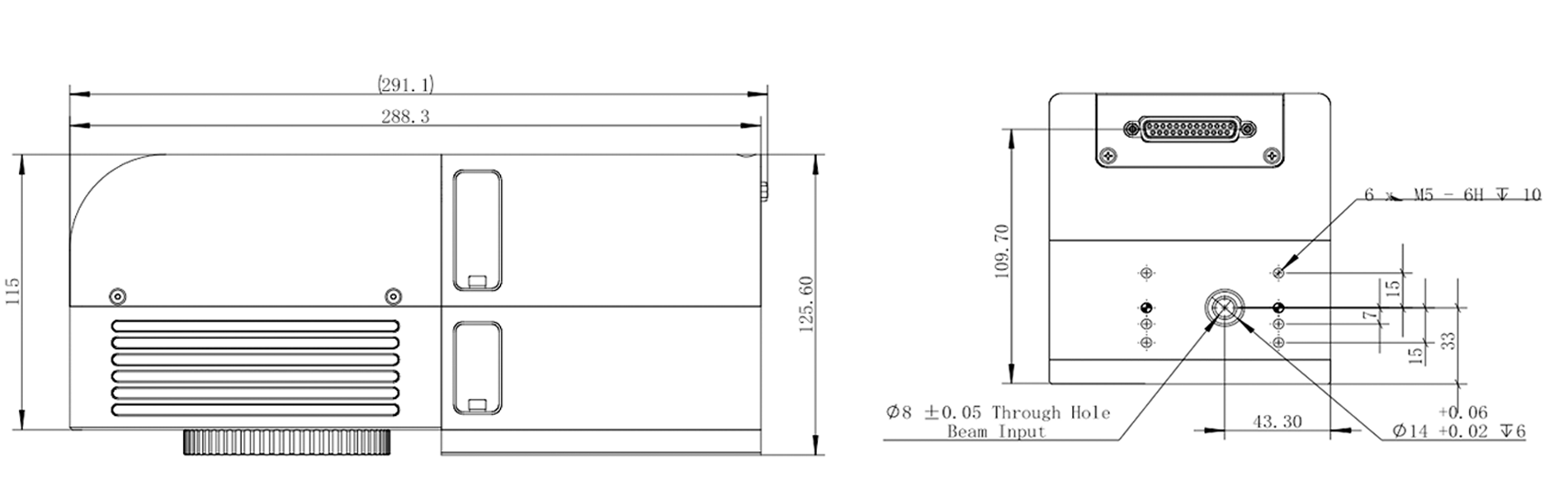

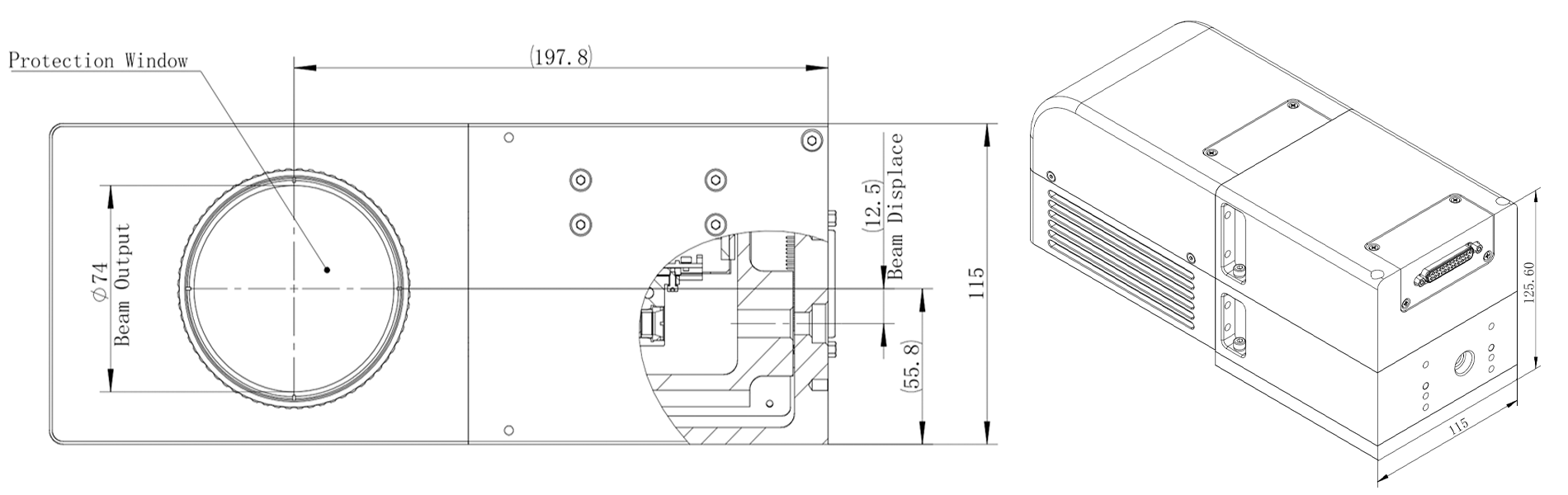

 Product dimensions

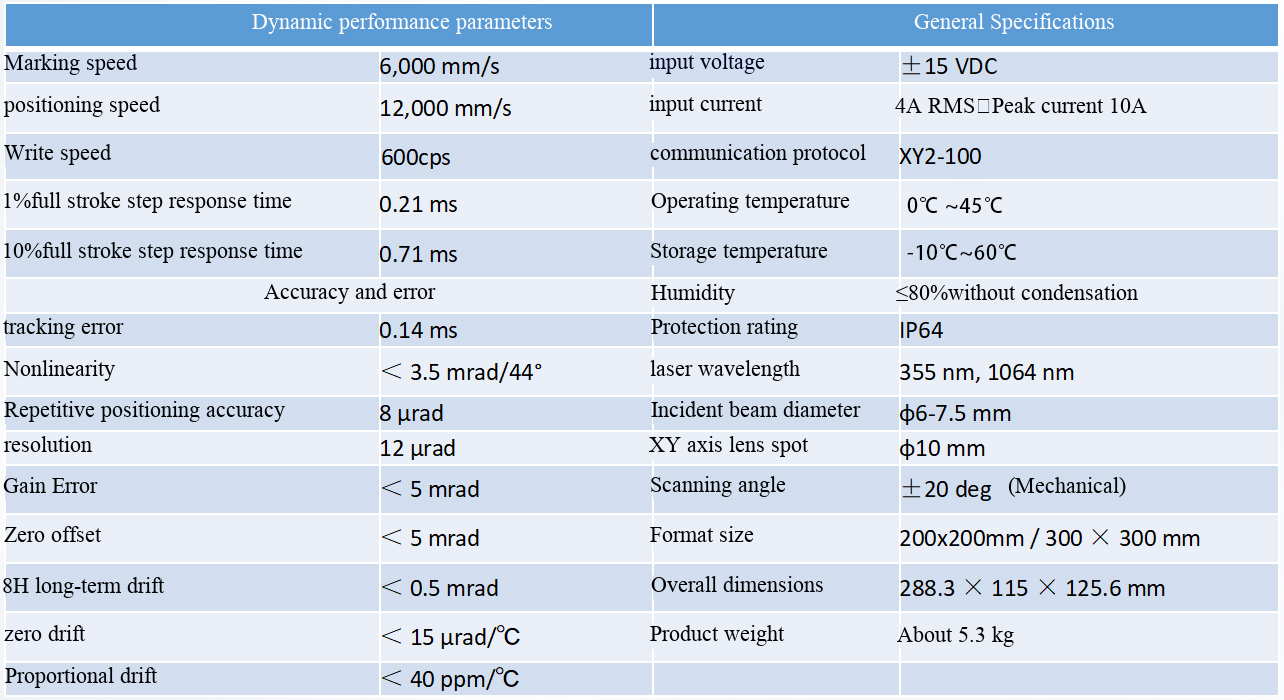

  Product performance parameters
