Product Application
Laser rust removal, laser paint removal, mold cleaning, weld cleaning, etc.....

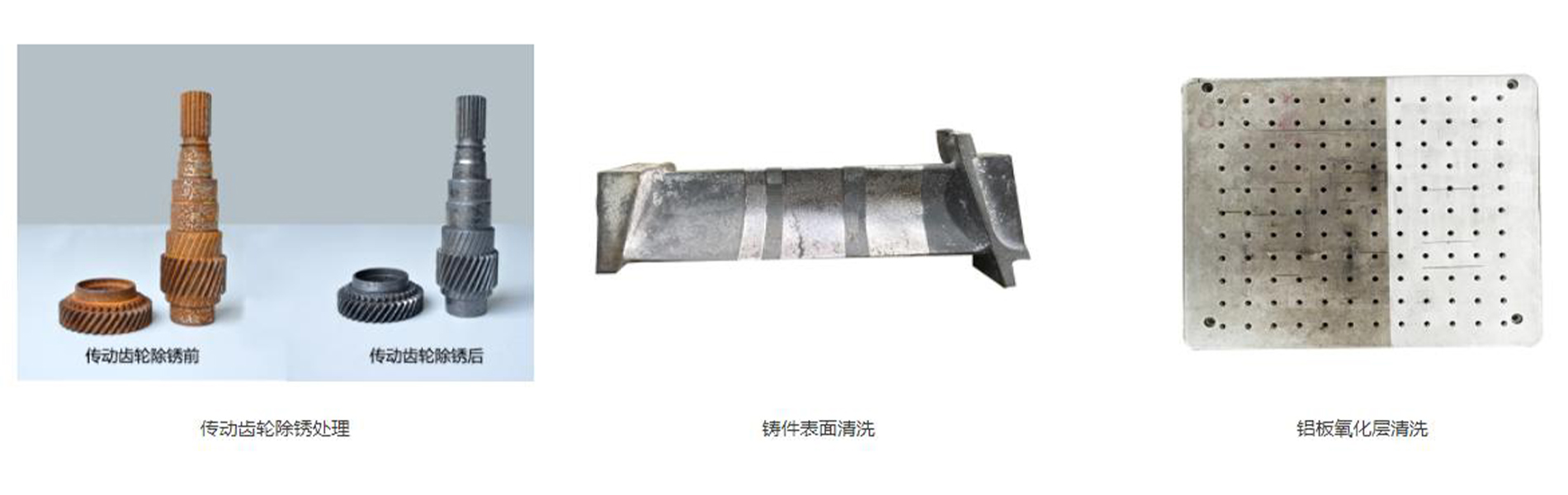

Rust removal treatment of transmission gears Surface cleaning of castings Cleaning of aluminum plate oxide layer

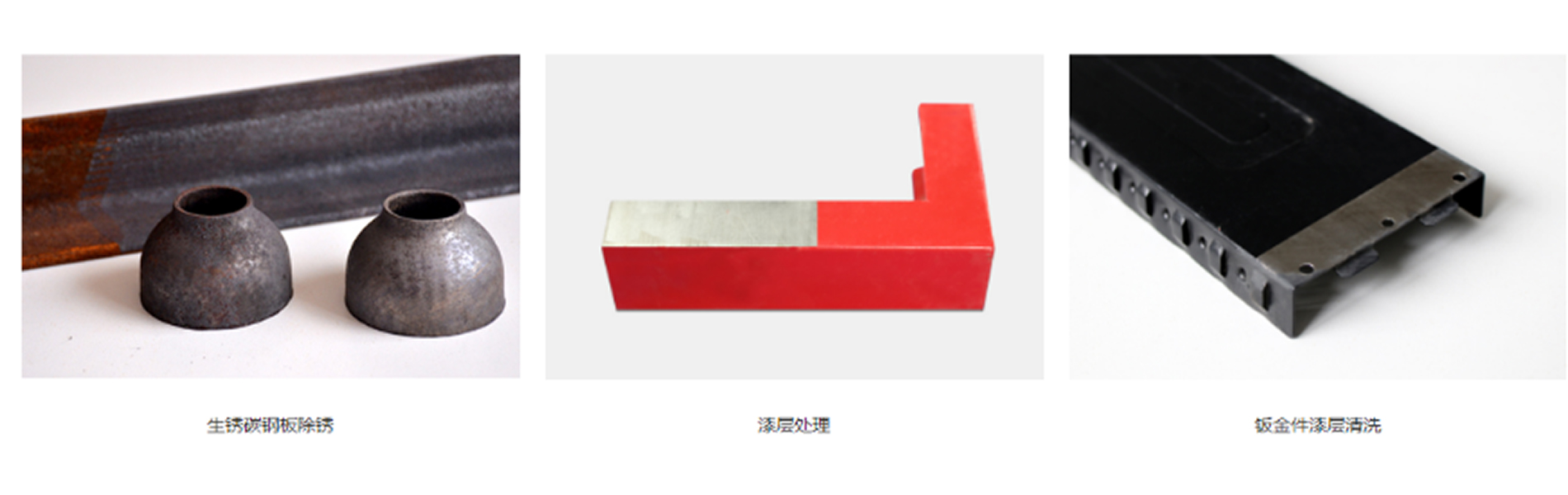

Rust removal of carbon steel plate Paint layer treatment Coating treatment of sheet metal parts
Product Specifications
clear aperture | 10mm |
Laser band | 1064±20 nm |
Power tolerance range (pulse laser) | ≤500W |
linearity | 99.90% |
repeatability accuracy | 20 u Rad |
Long term drift (continuous operation for 8 hours) | <0.2mRad |
Laser adaptation range | QCS17、QCS20 |
Standard cleaning format (254 field mirrors) | 150*150mm |
Cleaning speed (254 field mirrors) | ≤30000mm/s |
Positioning speed (254 field mirrors) | ≤35000mm/s |
Optical scanning angle | ±20° |
Air knife configuration | Circular air knife (6x4 trachea) |
Working temperature range | 25±10℃ |
Storage temperature | ~10℃～+60℃ |
Rated Current | 3A |
Cleaning head weight | 1.3 kg |
